Thông tin chi tiết sản phẩm:
|
| Sản phẩm: | Thanh tròn bằng thép không gỉ ASTM A564 SUS 631 17-7pH cho máy móc | Hình dạng: | Tròn |
|---|---|---|---|
| Bề mặt: | Đỏ, lột, ướp, màu đen, đường tóc, chải, bùng cát, vv | MTC: | Có sẵn |
| Kỹ thuật: | Rèn/Cán nóng/Rút nguội | Chứng nhận: | ISO, SGS, BV, AISI, ASTM, EN, DIN, JIS |
| Thị trường chính: | Trung Đông / Nam Á / Châu Âu / Nam Mỹ | Đường kính: | 8-400mm |
| Làm nổi bật: | ASTM A564 stainless steel round bar,17-7PH heat treated round bar,DIN1.4568 forged steel bar |
||
| 1. Product: | ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines |
| 2. Steel type: | * American name: AISI 631, also known as 17-7PH |
| * Chinese name: 00Cr17Ni4Cu4Nb | |
| 3. Standard: | ASTM A564 |
| 4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| 6. Surface: | Bright |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients' request etc |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated + age hardening heat treated ( H900, H1100, H1150 etc ) |
| 10. Feature of 631: | High Tensile strength, high hardness after heat treated. |
| 11. Mechanical property: | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| 12. Application: | * Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
| * pump shaft, machine-made industry, valve parts, paper mill equipment. | |
| 13. Delivery time | Generally within 25 days, as per the q'ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |

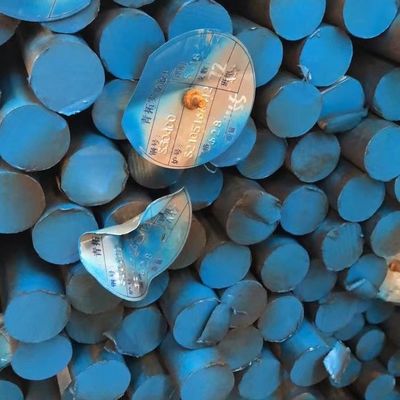

| 15. Package: | Good quality & fumigated wooden box, can better protect the bars. ( See pictures below ) |
17 - 7ph / 631 / UNS 17700 Stainless Steel Profiles 50mm Ss Round Bar
It's more than 5 years since we entered into the field of stainless steel strip, our strips are widely used for Pipe-making, Hose, Air conduit, Gasket, Hose clamp, Electronics and Petrochemical Industry.
We're the expert of stainless steel strip with rich experience, till now we have successfully participated many projects for domestic and international markets, and enjoy very good reputations.
Chemical composition
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Al |
| 17-7ph / 631 | A693 | ≤0.09 | ≤1.0 | ≤1.00 | ≤0.035 | ≤0.03 | 16.0~18.0 | 6.5~7.5 | 0.75~1.5 |
We also supply :
# stainless steel sheet /plate
# Stainless steel coil
# Stainless steel pipe/tube
# Stainless steel bar/rod
# Stainless steel square/angle bar
# Galvanized steel sheet/plate
# Galvanized steel coil
# Galvanized steel pipe/tube
Material/Grade : 304 321 316 316L 310S 309S 202 201 430 409L 444 410s 904L 2205 2507 Incoloy 800 800H 800HT 825 Inconel 600 625 718 Monel 400 Hastelloy C-276.etc
Company Information --- The Reason Why You Will Choose Us
Our Service
| 1 |
Free samples will be available for most of the products |
| 2 | 24 hours online to ensure your inquiry will be replied within 12 hours |
| 3 | Most products can be delivered within 7 days after order |
| 4 | Small trial order can also be accepted |
| 5 | Customized Size & Surface Treatment as your requirement |
| 6 |
Quality Inspection---We can provide MTC , PMI inspection , and SGS inspection or other third Party Inspection . |
| 7 | If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us |
