Thông tin chi tiết sản phẩm:
|
| OD: | 16-500mm | Chiều dài: | 3-6m 9m 12m |
|---|---|---|---|
| Bề mặt: | Đen và Sáng | Kiểu: | Cán nóng rèn |
| Lớp thép: | Thép hợp kim | Hình dạng: | Tròn |

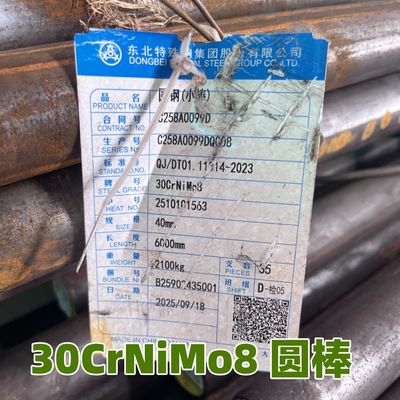

| Tên sản phẩm: | Thanh tròn thép hợp kim 1.6580 30CrNiMo8 qt | Xử lý bề mặt: | Đen/Bóc vỏ/Đánh bóng/Gia công |
| Tình trạng giao hàng: | ủ, cán nóng/rèn | Điều trị nhiệt: | Bình thường hóa + Ủ + Dập tắt + Cường độ |
| Làm nổi bật: | DIN 30CrNiMo8 alloy steel round bar,1.6580 hot forged steel bar,30NCD8 QT alloy steel bar |
||
| Grade : | 30CrNiMo8 | ||||
| Number: | 1.6580 | ||||
| Classification: | Alloy special steel | ||||
| Standard: |
|
||||
| Equivalent grades: | Go here |
Chemical composition % of steel 30CrNiMo8 (1.6580): EN 10083-3-2006
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.26 - 0.34 | max 0.4 | 0.5 - 0.8 | 1.8 - 2.2 | max 0.025 | max 0.035 | 1.8 - 2.2 | 0.3 - 0.5 |
Mechanical properties of steel 30CrNiMo8 (1.6580)
| Nominal diameter (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 | 250 - 330 | 330 - 660 |
| Rm - Tensile strength (MPa) (+QT) | 1250-1450 | 1250-1450 | 1000-1300 | 1000-1200 | 850-1100 | 850 | 800 |
| Nominal diameter(mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Re - Upper yield strength or Rp0.2 - 0.2% proof strength (MPa) (+QT) |
1050 | 1050 | 900 | 800 | 700 |
| Nominal thickness(mm): | to 160 | 160 - 330 | 330 - 660 |
| Re - Upper yield strength (MPa) (+QT) | 700 | 630 | 590 |
| KV - Impact energy (J) longitud., (+QT) | +20° 30-45 |
| KV - Impact energy (J) transverse, (+QT) | +20° 20-27 |
| A - Min. elongation at fracture (%) transverse, (+QT) | 8-14 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) (+QT), round products | 9 | 9 | 10 | 11 | 12 |
| Nominal diameter (mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
| Z - Reduction in cross section on fracture (%) (+QT) | 40 | 40 | 45 | 50 | 50 |
| Brinell hardness (HBW): (+A) | 248 - 255 |
Equivalent grades of steel 30CrNiMo8 (1.6580)
Warning! Only for reference
| EU EN |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
China GB |
Russia GOST |
Inter ISO |
|||||||
| 30CrNiMo8 |
|
|
|
|
|
|
|
Mechanical properties
| ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
| A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
|
|
|
Alloy special steel |
