Thông tin chi tiết sản phẩm:
|
| name: | seamless steel pipe | type: | hot rolled / cold drawn |
|---|---|---|---|
| Thickness: | 8 - 25 mm | Application: | Structure Pipe |
| Outer Diameter: | 50 - 194 mm | Alloy Or Not: | Non-alloy |
| Làm nổi bật: | heavy steel pipe,structural steel pipes |
||

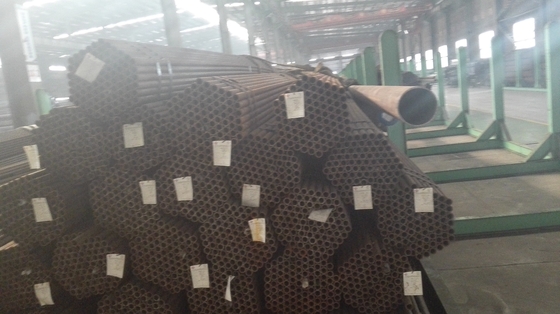

Material 20#,65*12*6-12m,Hot Rolled Low carbon seamless steel pipe
| Advantaged Product Specification | ||||
| English | Chinese | |||
| Outside Diameter | Wall | Outside | Wall | |
| (Inch) | thickness | Diameter | thickness | |
| (Inch) | (mm) | (mm) | ||
| From 2 to 8 | From 40S to 120S | From 50 to 194 | From 8 to 25 | |
| Length | From 6m to 12m in accordance with customers' requirements | |||
| Chinese | American | German | ||
| Material | 10# | ASTM A53-A | St37 DIN1626 | |
| & | ASTM A106-A | St37-2 DIN17175 | ||
| Standard | ASTM A179-C | St35.8 DIN17175 | ||
| Description | ASTM A192 | St35.8 DIN17175 | ||
| 20# | ASTM A53-B | St42-2 DIN1626 | ||
| ASTM A106-B | St45-8 DIN17175 | |||
| ASTM A178-C | St45-4 DIN1629 | |||
| 45# | ASTM A1045 | CK45 | ||
| 16Mn | ASTM A210-C | St52 DIN1629 | ||
| 37Mn5 | J55 | |||
| 27SiMn | ||||
| CrMo | ASTM 4135,4150 | CrMo4 DIN17212 | ||
| 40Cr | ASTM 5140 | 41Cr4 | ||
Specifications:
size range
| NPS | OD | WT | |||||||||||
| INCH | MM | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | |||||
| 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | |||||
| 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | |||||
| 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | |||||
| 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | |||||
| 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | |||||
| 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | |||||
| 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | |||||
| 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | ||||||
| 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | ||||
| 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | |||||
| 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | |||||
| 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | ||||||||
| 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||
Application of seamless steel pipe
1. Construction are: pipeline under most more building in extraction of groundwater, the boiler hot water use, etc.
2. Mechanical processing, bearing sleeve, processing machinery spare parts, etc.
3. Electrical class: gas pipeline, water power fluid.
4. Wind farms anti-static tube, etc.
